Watering - Raised Bed Drip Irrigation Kit

Drip System for Raised Garden Beds!

Water your raised garden beds with ease.  Reuse year after year with this low-maintenance drip irrigation specifically designed for planter boxes and raised garden beds. This kit comes with a 3 Year Manufacturer Warranty.

The kit contains 50’ of 1/4” dripline with .52 GPH @ 15 PSI or .65 GPH @ 25 PSI drip emitters every 9”, providing up to five lines, with each line up to 10' long (up to 150 sq. ft). The kit can be expanded to cover more than 700 sq. ft. using up to five kits together or expanding the kit using additional 1/2” drip tubing as the supply line, along with additional 1/4” drip line.

The kit includes a 3/4" backflow preventer, 3/4" 25 PSI pressure regulator, 3/4" swivel adapter, 50' of our premium 1/2" drip tubing with .600 ID x .700 OD and all the necessary parts to complete the installation.

Product specifications:

• Maximum incoming operating pressure: 100 PSI

• Recommenced operating pressure: 25 PSI (25 PSI pressure regulator included)

• Maximum recommended flow rate: 220 GPH (3.7 GPM)

• Maximum recommended distance for 9" spacing: 28' (8.5 m)

• Drip poly tubing length & size: 50' x 1/2" with .600 ID x .700 OD

• Drip line length & size: 50' x 1/4" with .170 ID x .240 OD

• 3/4" FHT x MHT pressure regulator: downstream pressure preset to 25 PSI

• PC drip emitter flow rates: .52 GPH @ 15 PSI and .65 GPH @ 25 PSI)

• Total flow rate for this kit: 36 GPH (.61 GPM)

Features:

• Perfect for planter boxes or vegetable garden in-ground installations

• Complete kit; covers up to 150 sq ft (can be easily expanded)

• Contains 50' of 1/4" drip line with .52 GPH pre inserted drip emitters every 9"

• Applies water at a very low application rate leading to less surface evaporation from leaves and soil

• Offers flexibility in irrigation frequency and application rate, minimizing surface compacting and runoff

• Designed for row plantings, or plants in close spacing of any type

• No special tools or glue are needed

• Saves money by significantly lowering the cost of system components compared to conventional irrigation systems

• DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)

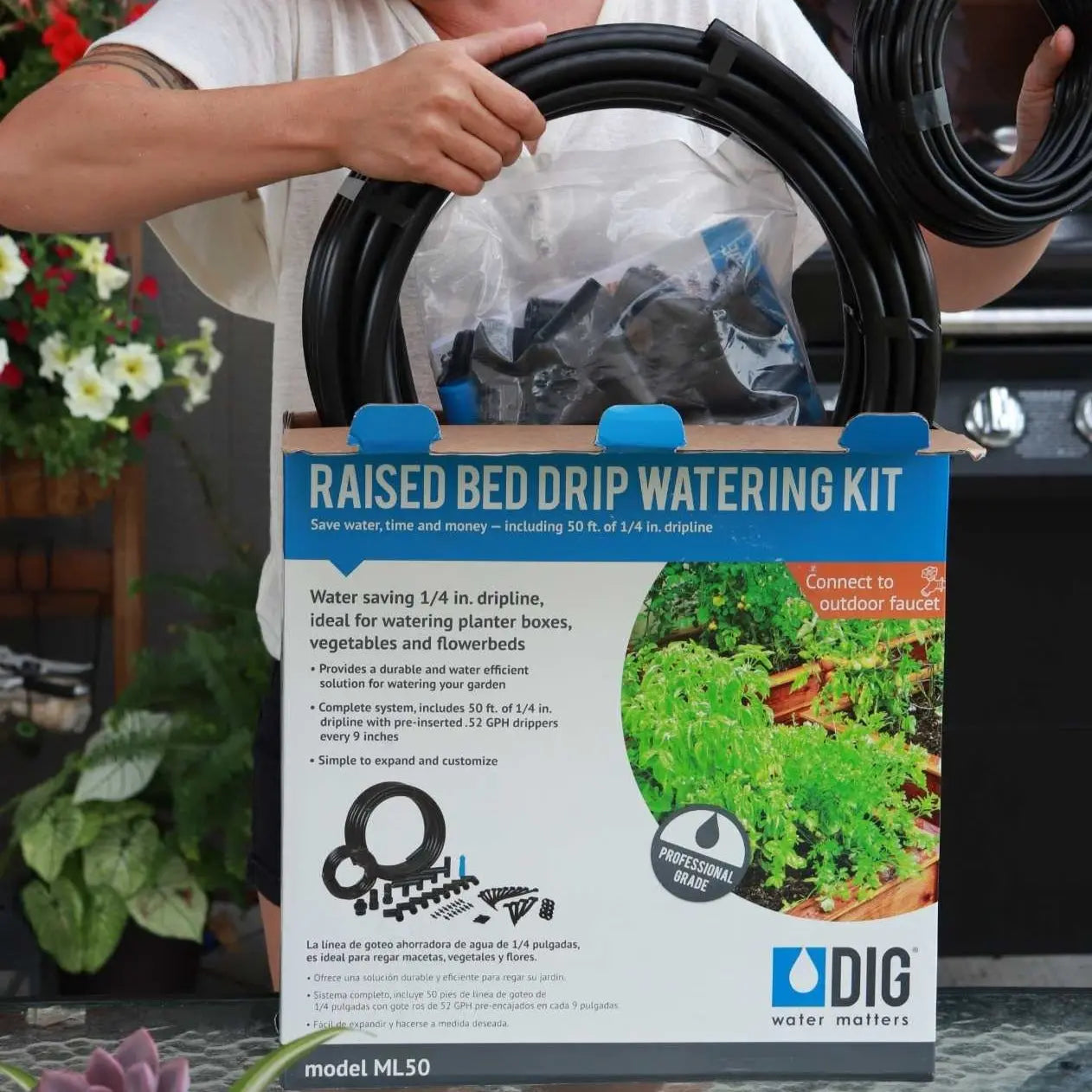

Includes:

• 3/4 FHT X MHT backflow preventer (1)

• 3/4" FHT X MHT preset pressure regulator (1)

• 3/4" FHT swivel adapter (1)

• 50' of 1/2" poly tubing (1)

• 50' of 1/4" dripline with 9" drip emitter spacing (1)

• 1/2" coupling (1)

• 1/2" tees (3)

• 1/2" elbows (8)

• 1/2" tubing holder stakes (4)

• 1/4" tubing holder stakes (10)

• 1/4" barbs (15)

• goof plugs (10)

• hole punch (1)

• figure "8" hose ends (4)

• Instruction manual (1)
